KPG Glass Stirrer Shafts | BOLA

Material: PTFE
Chemical resistance: +++ universal
Temperature resistance: -200°C to +250°C
FDA conformFDA conform:
All parts coming into contact with the fluid are from materials that correspond to FDA requirements. A certificate of conformity is included with each shipment.

Technical information

Material Safety Data Sheets


Length [mm] Stirrer shaft dia. [mm] Blade dimensions [mm] Chucking dia. [mm] Cat-no. Price*/piece Select the quantity for an offer or order and place it in the shopping cart
350 10 50 x 24 x 3 8 C387-05
€177.30
350 10 75 x 24 x 3 8 C387-07
€168.04
350 10 90 x 24 x 3 8 C387-09
€168.04
400 10 50 x 24 x 3 8 C387-11
€168.09
400 10 75 x 24 x 3 8 C387-13
€168.83
400 10 90 x 24 x 3 8 C387-15
€169.01
C387-05 - KPG-Glas-Rührwellen | BOLA
Length [mm] 350
Stirrer shaft dia. [mm] 10
Blade dimensions [mm] 50 x 24 x 3
Chucking dia. [mm] 8
€177.30
C387-07 - KPG-Glas-Rührwellen | BOLA
Length [mm] 350
Stirrer shaft dia. [mm] 10
Blade dimensions [mm] 75 x 24 x 3
Chucking dia. [mm] 8
€168.04
C387-09 - KPG-Glas-Rührwellen | BOLA
Length [mm] 350
Stirrer shaft dia. [mm] 10
Blade dimensions [mm] 90 x 24 x 3
Chucking dia. [mm] 8
€168.04
C387-11 - KPG-Glas-Rührwellen | BOLA
Length [mm] 400
Stirrer shaft dia. [mm] 10
Blade dimensions [mm] 50 x 24 x 3
Chucking dia. [mm] 8
€168.09
C387-13 - KPG-Glas-Rührwellen | BOLA
Length [mm] 400
Stirrer shaft dia. [mm] 10
Blade dimensions [mm] 75 x 24 x 3
Chucking dia. [mm] 8
€168.83
C387-15 - KPG-Glas-Rührwellen | BOLA
Length [mm] 400
Stirrer shaft dia. [mm] 10
Blade dimensions [mm] 90 x 24 x 3
Chucking dia. [mm] 8
€169.01

Product description KPG stirrer shaft with double pivot made of ground and polished... more
Product information "KPG Glass Stirrer Shafts | BOLA"

Product description

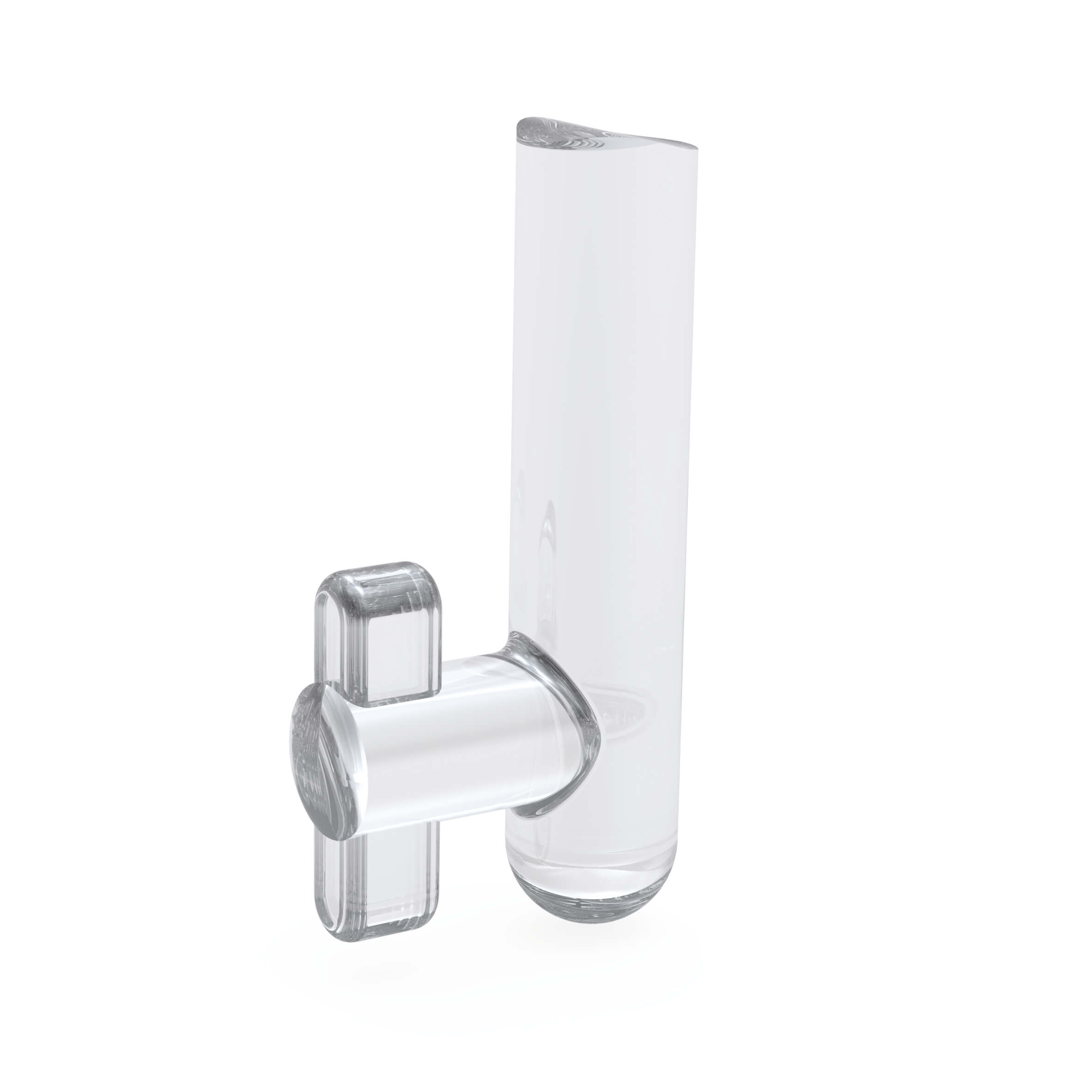

KPG stirrer shaft with double pivot made of ground and polished borosilicate glass, tiltable moon-shaped stirrer blade with double-sided groove completely made of PTFE. For vessels with a 29/32 ground joint. Universal chemical resistance since the product is only exposed to PTFE and glass.

Applications

Tangential flow with little turbulence. The tilting half-moon blade is ideal for stirring in round-bottom flasks with ground joint necks. Blades are available separately and can be mounted additionally.
You would like to get a quote?
Add the products that are to be included in your quote to the shopping cart. Open the cart and tap "send offer as e-mail". After having entered all requested date you will receive a personalized quote by e-mail.
