Corrugated Tubing

Material:	PFA
Chemical resistance:	+++ universal
Vacuum:	suitable
Temperature resistance:	-200°C to +260°C
Transparency:	transparent

FDA conformFDA conform:
All parts coming into contact with the fluid are from materials that correspond to FDA requirements. A certificate of conformity is included with each shipment.

Material Safety Data Sheets

Download: PFA

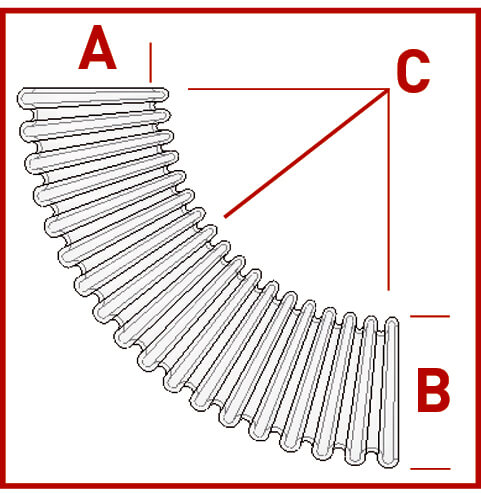

Nominal width [NW]	I.D. [(A) mm]	O.D. [(B) mm]	Bending radius (1) [(C) mm]	Pressure load [max. bar]	Cat-no.	Price*/m	Select the quantity for an offer or order and place it in the shopping cart
4,5	4,3	6,8	5	1,7	S1820-01	1 - 9 €42.75 From 10 €34.27
8	7,7	10,7	15	3,4	S1820-02	1 - 9 €51.68 From 10 €32.26
10	9,7	13,0	18	2,8	S1820-04	1 - 9 €45.55 From 10 €33.50
13	12,4	16,1	23	2,6	S1820-06	1 - 9 €58.88 From 10 €40.42
14	13,7	17,8	25	2,3	S1820-08	1 - 9 €85.17 From 10 €58.48
16	15,4	19,7	28	2,3	S1820-10	1 - 9 €76.81 From 10 €52.75
19	18,4	23,2	32	2,2	S1820-14	1 - 4 €95.28 From 5 €65.47
21	19,8	24,8	35	2,1	S1820-16	1 - 4 €116.79 From 5 €83.17
23	23,8	28,8	40	1,2	S1820-23	1 - 9 €103.48 From 10 €77.76

S1820-01 - Wellschläuche | BOLA

Nominal width [NW]	4,5
I.D. [(A) mm]	4,3
O.D. [(B) mm]	6,8
Bending radius (1) [(C) mm]	5
Pressure load [max. bar]	1,7

Quantity	Price*/m
1 - 9	€42.75
From 10	€34.27

S1820-02 - Wellschläuche | BOLA

Nominal width [NW]	8
I.D. [(A) mm]	7,7
O.D. [(B) mm]	10,7
Bending radius (1) [(C) mm]	15
Pressure load [max. bar]	3,4

Quantity	Price*/m
1 - 9	€51.68
From 10	€32.26

S1820-04 - Wellschläuche | BOLA

Nominal width [NW]	10
I.D. [(A) mm]	9,7
O.D. [(B) mm]	13,0
Bending radius (1) [(C) mm]	18
Pressure load [max. bar]	2,8

Quantity	Price*/m
1 - 9	€45.55
From 10	€33.50

S1820-06 - Wellschläuche | BOLA

Nominal width [NW]	13
I.D. [(A) mm]	12,4
O.D. [(B) mm]	16,1
Bending radius (1) [(C) mm]	23
Pressure load [max. bar]	2,6

Quantity	Price*/m
1 - 9	€58.88
From 10	€40.42

S1820-08 - Wellschläuche | BOLA

Nominal width [NW]	14
I.D. [(A) mm]	13,7
O.D. [(B) mm]	17,8
Bending radius (1) [(C) mm]	25
Pressure load [max. bar]	2,3

Quantity	Price*/m
1 - 9	€85.17
From 10	€58.48

S1820-10 - Wellschläuche | BOLA

Nominal width [NW]	16
I.D. [(A) mm]	15,4
O.D. [(B) mm]	19,7
Bending radius (1) [(C) mm]	28
Pressure load [max. bar]	2,3

Quantity	Price*/m
1 - 9	€76.81
From 10	€52.75

S1820-14 - Wellschläuche | BOLA

Nominal width [NW]	19
I.D. [(A) mm]	18,4
O.D. [(B) mm]	23,2
Bending radius (1) [(C) mm]	32
Pressure load [max. bar]	2,2

Quantity	Price*/m
1 - 4	€95.28
From 5	€65.47

S1820-16 - Wellschläuche | BOLA

Nominal width [NW]	21
I.D. [(A) mm]	19,8
O.D. [(B) mm]	24,8
Bending radius (1) [(C) mm]	35
Pressure load [max. bar]	2,1

Quantity	Price*/m
1 - 4	€116.79
From 5	€83.17

S1820-23 - Wellschläuche | BOLA

Nominal width [NW]	23
I.D. [(A) mm]	23,8
O.D. [(B) mm]	28,8
Bending radius (1) [(C) mm]	40
Pressure load [max. bar]	1,2

Quantity	Price*/m
1 - 9	€103.48
From 10	€77.76

Product description Circular corrugations around the longitudinal axis. Can be shortened easily... more

Close menu

Product information "Corrugated Tubing | BOLA"

Product description

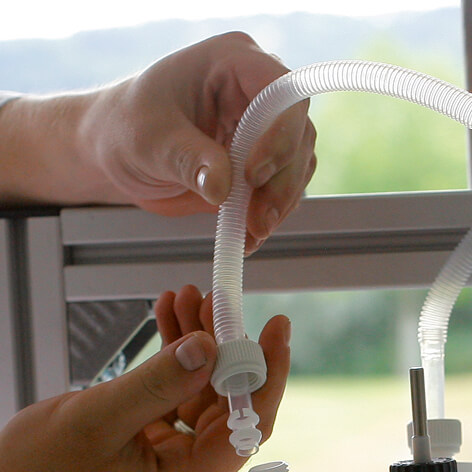

Circular corrugations around the longitudinal axis. Can be shortened easily by means of a tubing cutter.

Product advantages

» flexible to highly flexible
» tight bending radius only causes little cross-section reduction
» non-porous
» translucent
» resistant to irradiation and weather
» almost universal chemical resistance

Applications

Perfect tubing for aggressive and pure liquids or gases.

(1) Bending radius: minimum bending radius in mm at a room temperature of 23°C
